One kit.
The whole fleet.
One tray design scales across the Dell desktop line, from a single removable drive to eight. Keep scrolling to walk the configurations.
Dell RDK · For National Security Systems
Removable Drive Kit
Mark the drive, not the machine. Classified storage that locks, pulls, and moves, at full NVMe speed.
TheclassifieddriveslidesoutandlocksawayatfullNVMespeed.
Lock it in a safe. Move it between machines. Mark the drive, not the machine
One chassis.
Every classification.

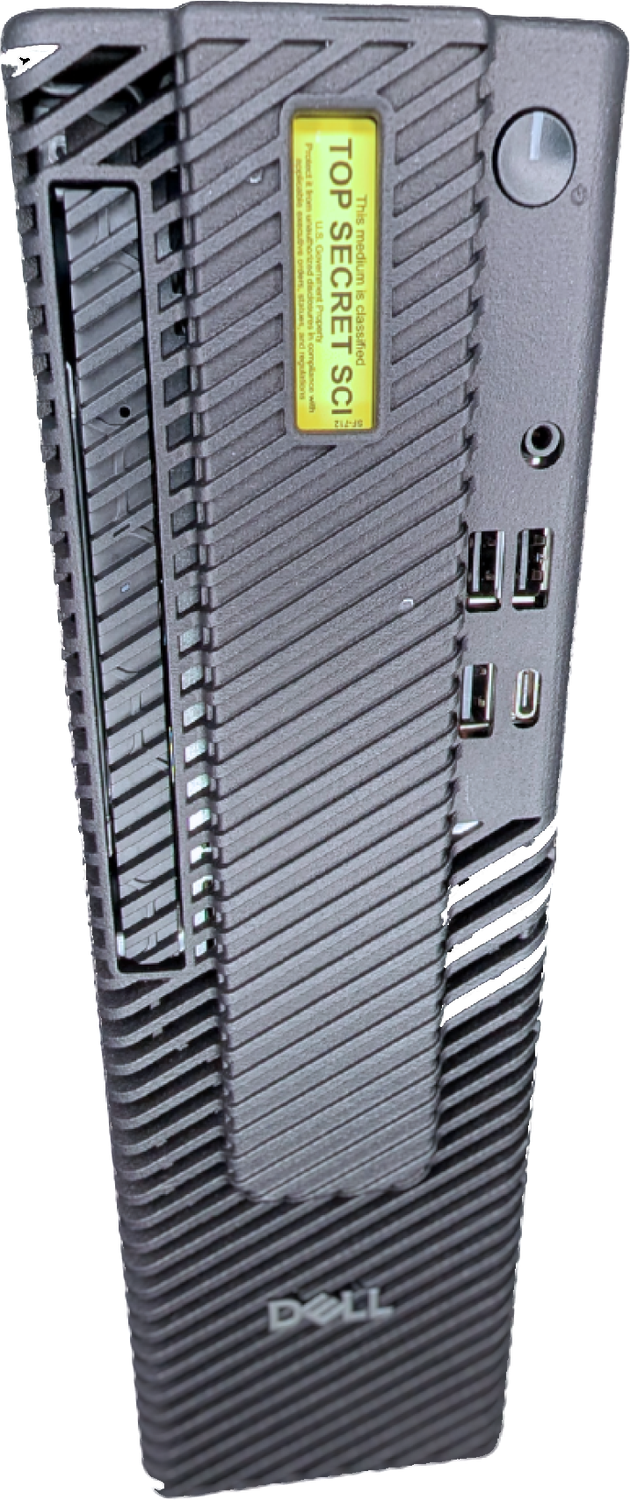

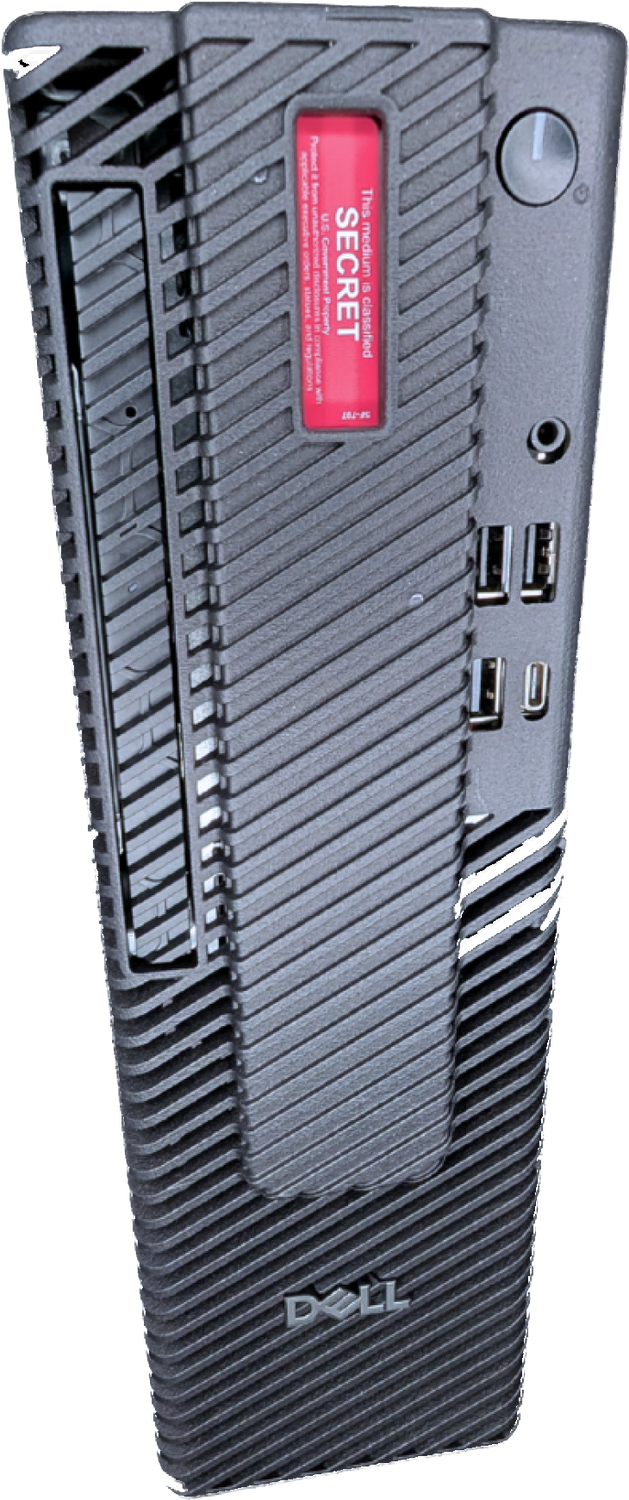

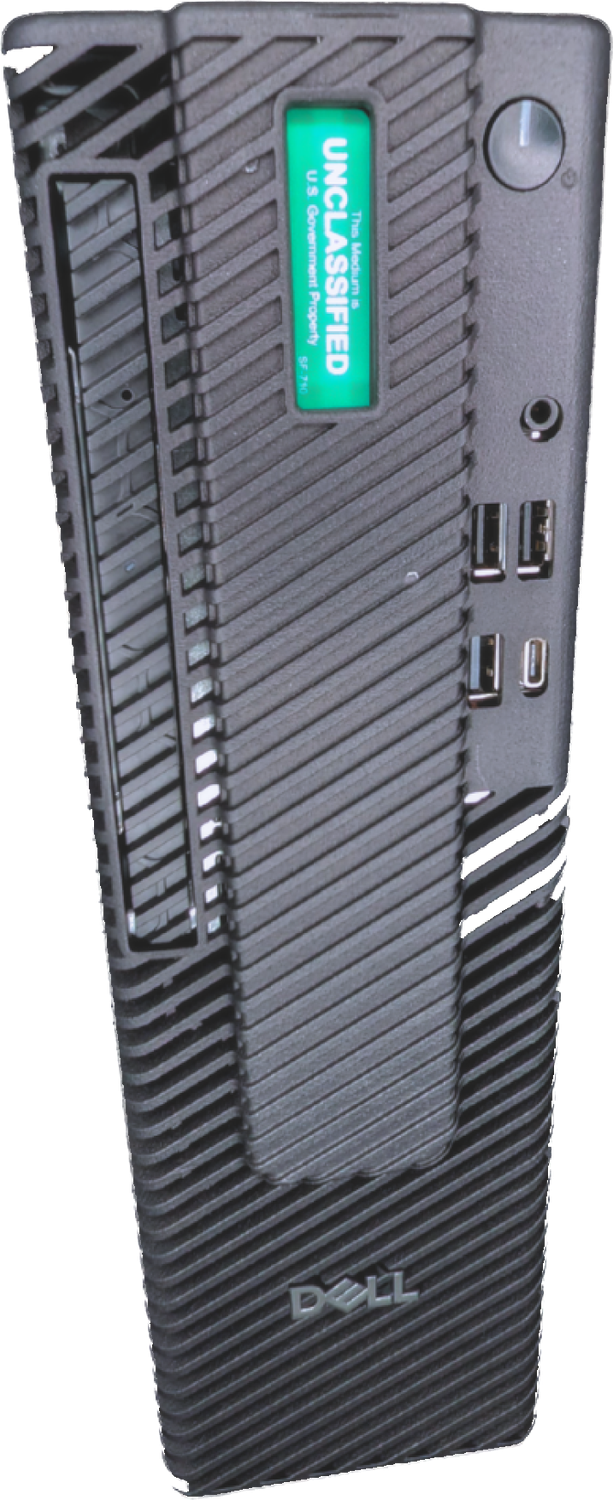

The drive's classification shows through a window on the front. Swap the drive and the machine's marking changes with it, so the label lives on the media, not the hardware.
- Unclassified
-
Secret -
Top Secret / SCI
Classification sleeves per the Dell RDK brochure
Full NVMe speed.
Nothing lost to the tray.
Removing the drive costs nothing in throughput. The kit benchmarks at parity with a directly-attached Dell drive, and roughly five times a SATA III internal drive.
~5×
the speed of a SATA III internal drive
Per Dell's published benchmarks
Directly-attached Dell drive Removable Drive Kit
Sequential read
Sequential write
Sequential throughput · Dell's published benchmarks
Security
A lock you can hold.

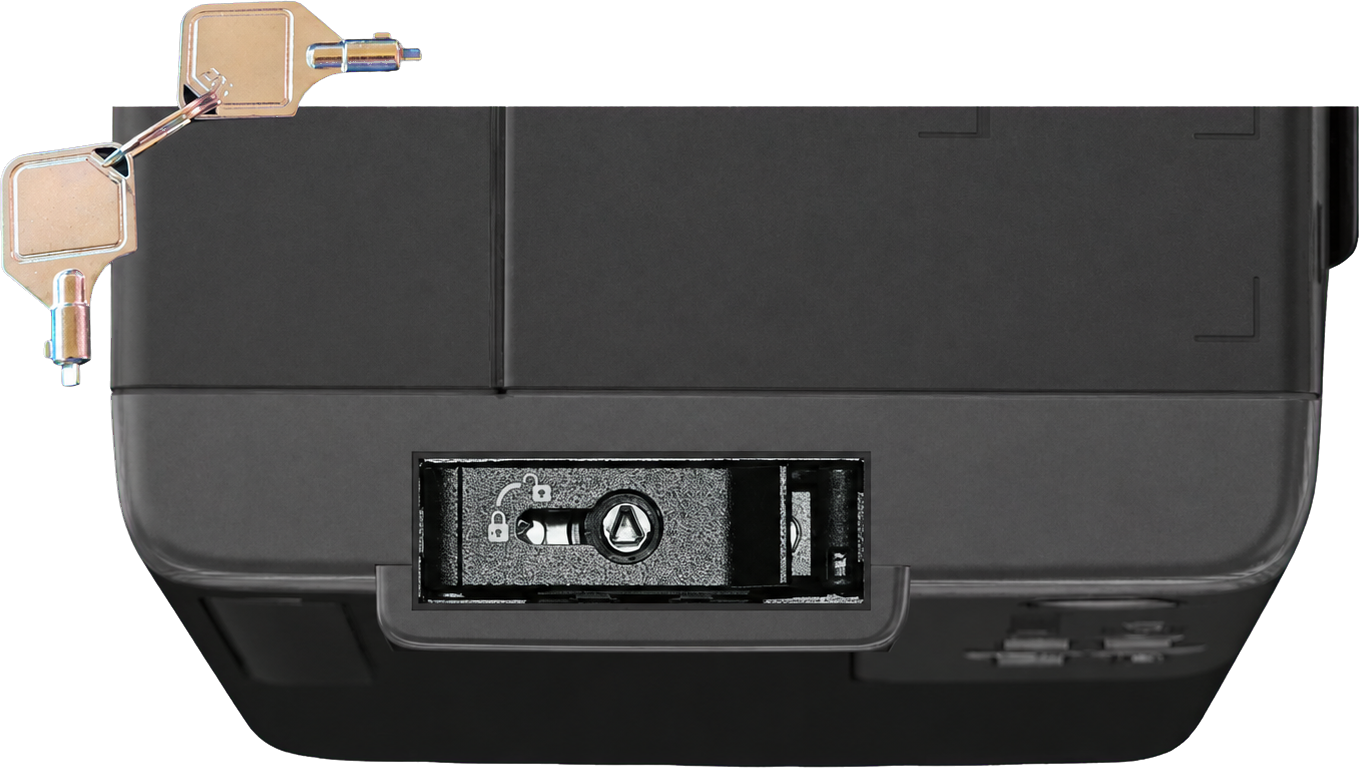

A keyed lock and two keys, built into the metal tray. Latch it shut, slide the drive out, and lock it in a safe overnight. Front status lights read the drive's state at a glance.
- Keyed lock
- Two keys
- Latching mechanism
- Front status lights
Build
One metal tray.

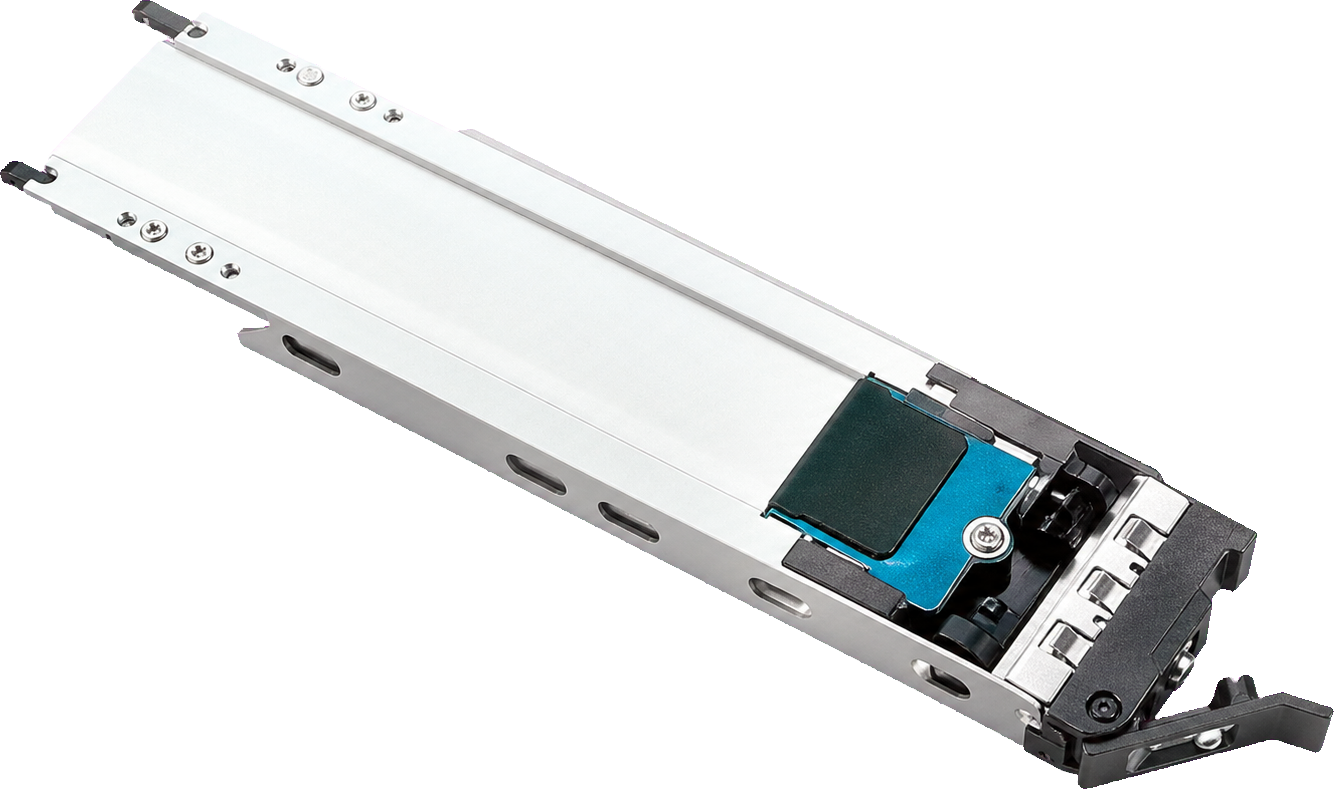

A single-piece metal frame in industrial-strength nylon, machined for the Dell chassis. It carries an M.2 2230 to 2280 drive at full NVMe speed, and slides in and out by hand.
- Metal frame + slide
- Industrial nylon
- Single piece per chassis
- M.2 2230 to 2280
One kit.
CFG·01
Single front-removable
Dell Pro Slim Max · Pro Slip Plus
- FaceFront
- Bays×1
- M.22230 to 2280
CFG·02
Single rear-removable
All Dell desktop models · adapter for Slim
- FaceRear
- Bays×1
- M.22230 to 2280
CFG·03
Dual rear-removable
Dell T2 tower
- FaceRear
- Bays×2
- M.22230 to 2280
CFG·04
Dual front-removable
Dell T2 · keeps the optical drive
- FaceFront
- Bays×2
- M.22230 to 2280
CFG·05
Quad front-removable
Dell T2 · replaces optical
- FaceFront
- Bays×4
- M.22230 to 2280
CFG·06
8-drive front-removable
Dell T2 · replaces optical
- FaceFront
- Bays×8
- M.22230 to 2280
Enclosures available separately · trays accept 2230 / 2242 / 2260 / 2280 M.2 · per the Dell RDK brochure
Data sheet
Performance
- Sequential read
- 6,829 MB/s
- Sequential write
- 5,658 MB/s
- Vs. direct-attached
- At parity
- Vs. SATA III
- ~5× (per Dell)
Drive support
- Interface
- NVMe PCIe
- M.2 sizes
- 2230 · 2242 · 2260 · 2280
- Enclosure
- Available separately
- Product
- SKU'd Dell product
Security
- Lock
- Keyed · two keys
- Marking
- Front classification window
- Sleeves
- Unclass · Secret · TS/SCI
- Status
- Front light codes
Build
- Frame
- Metal frame + slide
- Body
- Industrial-strength nylon
- Construction
- Single piece per chassis
- Compliance
- For National Security Systems
